Arcadium™ Oscillator

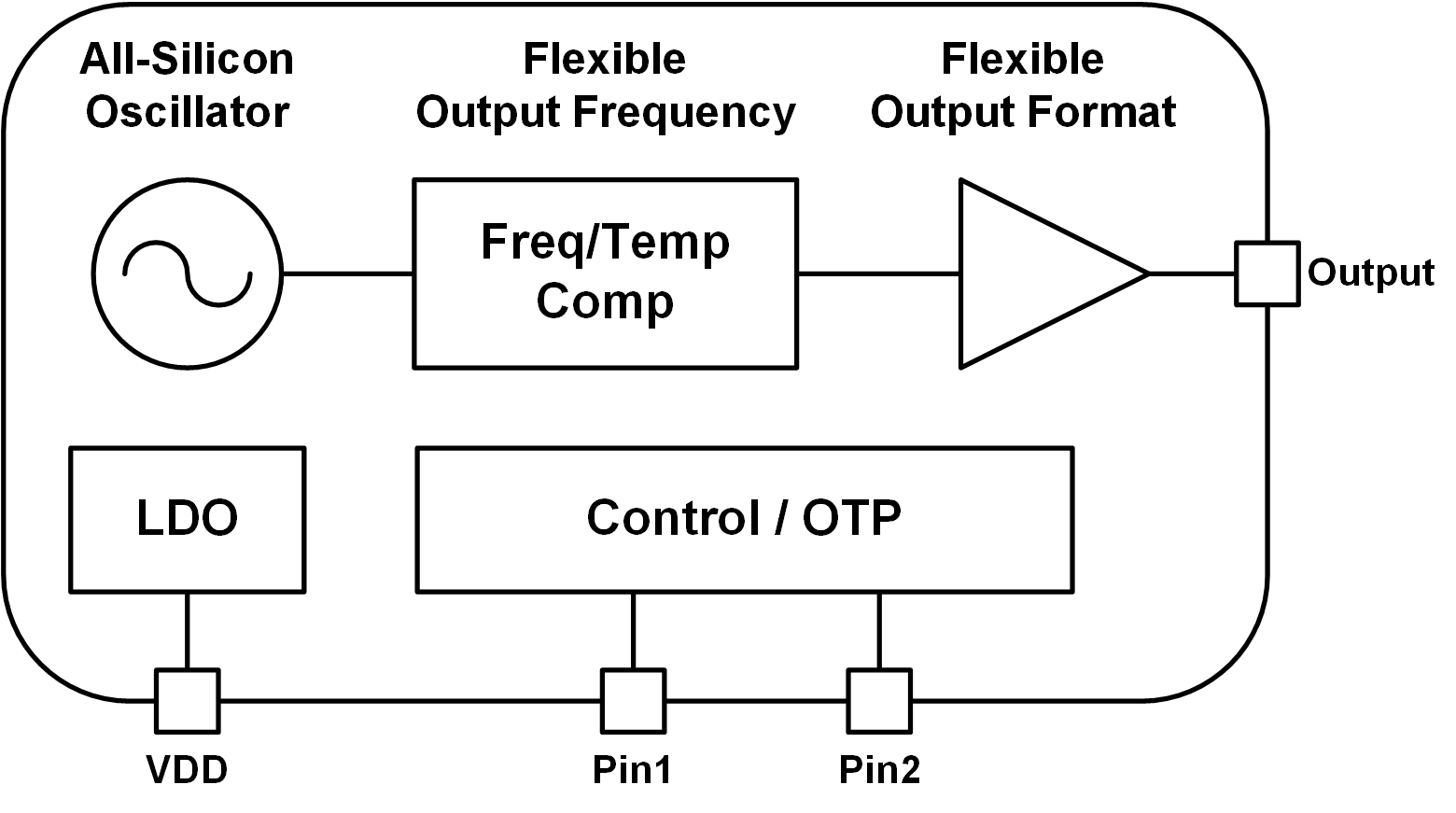

Arcadium™ is industry’s first all-silicon oscillator in its performance class in jitter, stability and temperature range, making it a perfect fit for applications in servers, AI processors, network interfaces, edge computing, industrial and in-vehicle-networking etc.

Features and Benefits

  • Quartz-free and MEMS-free
  • Low RMS jitter of 350 fs (12kHz – 20MHz)
  • Temperature Stability: +/- 12ppm(0~70ºC), +/-35ppm(-40~85ºC)
  • Available with frequencies from 10kHz to 350MHz
  • Supports -40ºC to 105ºC temperature range
  • Semiconductor-level quality and reliability
  • Support LVCMOS, Dual LVCMOS, LVPECL, LVDS, HCSL or CML output format
  • Flexible supply from 1.71V to 3.47V, no need for any external LDOs
  • No activity dips, no shock failure
  • 100G shock tolerant based on MIL-STD-883 test
  • Standard 5032 and 3225 packages
  • Samples available with 2-week lead time
Part Number Ex: 5001DAA100M0000BBI
5-digit Device Configuration Number Ex: 00123
Product Family Part Number Customize Selectable
Configurations 		Phase Jitter
(RMS) (ps) 		Frequency Range
(MHz) 		Temperature Stability
(+/- ppm) 		Package Advanced option
Differential XO
AS5000 Series 		AS5002 Customize Tri 0.35 0.01 to 350 35 3225, 5032 Pin controlled DCXO, SSC, 9 frequencies, VCXO
CMOS XO
AS510 Series 		AS511 Customize Single 0.35 0.01 to 212.5 35 3225 /
CMOS XO
AS510 Series 		AS512 Customize Tri 0.35 0.01 to 212.5 35 3225 Pin controlled DCXO, SSC, VCXO
Differential XO
AS5000 Series 		AS5001 Customize Single 0.35 0.01 to 350 35 3225, 5032 /
Differential XO
AS5000 Series 		AS5003 Customize Any(I2C) 0.35 0.01 to 350 35 3225, 5032 SSC
